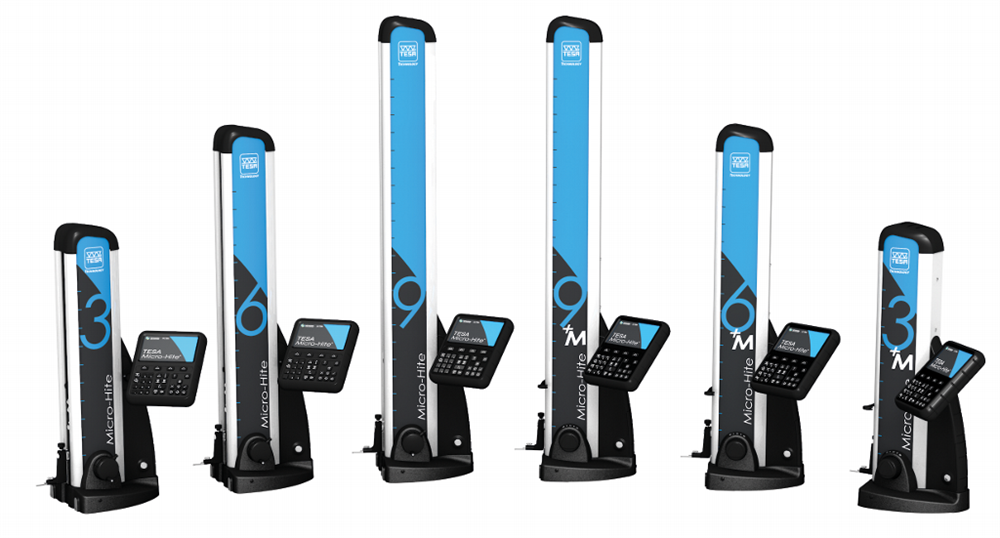

Manual height gauges designed for use directly in the workshop or laboratory. Reliable and robust, these versatile instruments are easy to integrate close to the user.
Universal and multifunctional, yet simple to operate
An essential metrology tool, replacing conventional measuring devices
Available measuring ranges: 350 mm, 600 mm, 900 mm
Motorized height gauges offering the highest precision within the MICRO-HITE range.
Equipped with the exclusive patented FEEL&MOVE handwheel, combining rapid probe positioning with smooth and intuitive measurement sequences
Designed for maximum accuracy and ease of use
Available measuring ranges: 350 mm, 600 mm, 900 mm
| Measuring force | 1,5 ± 0,5 N |
| Units | mm / in |
| Range | 350 / 600 / 900 mm |
| Resolution | 0,0001 / 0,001 / 0,01 mm .00001 / .0001 / .001 in |
| Zero | Fixed |
| Error limit (L = meas. length in mm) | 2.5 + 4L / 1000 µm |
| Material | Base: Cast iron |
| Degree of protection | Panel: IP65 |
| Particular characteristic(s) | Integrated fine adjustment Air cushion system |
| Weight | Model 400: 24 kg Model 700: 30 kg |
| Power supply | Power connection Rechargeable interchangeable battery |
| Function(s) | Manual displacement of the measuring probe |
| Autonomy | ≈ 60 hours |
| Included in delivery | SCS
Manufacturer’s test certificate |
| Data output(s) | TLC |
